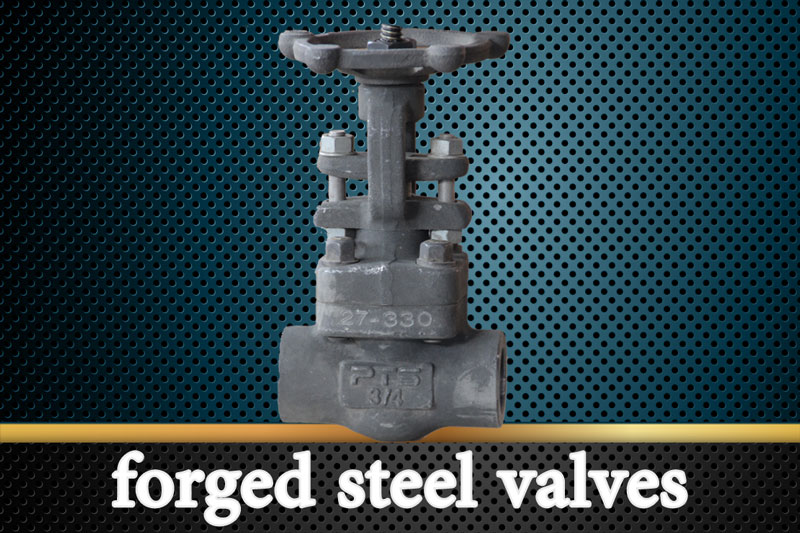

forged steel valves

forged-steel-valves

Valve Type

Size

Class

Features

Specifications

Gate



2"to 40"



2"to 40"

Bolted / Welded Bonnet, Hand Wheel  Operation , Outside Screw & Yoke , Stem Rising

FL/BW/SCR(NPT)/SW Connection, Replaceable Packing Under Pressure, According to NACE MR 0175/0103 as Request.

API 602,BS-EN-ISO 15761,BS 1414,ANSI 16.34,API 598

Globe

1/4"to 2,1/2"

150 to 2500

Bolted / Welded Bonnet, Hand Wheel  Operation , Outside Screw & Yoke , Stem Rising

FL/BW/SCR(NPT)/SW Connection, Replaceable Packing Under Pressure, According to NACE MR 0175/0103 as Request.

BS-EN-ISO 15761,BS 1873,API 598

Check

 2"to 40"  2"to 40"

Bolted / Welded Cover, Piston/Ball/ Swing Type, Single/ Dual Plate, FL/ BW/SCR(NPT)/SW Connection, According to NACE MR 0175/0103 as Request.

BS-EN-ISO 15761,BS 1868,API 598

Needle

Up to 1"

10,000 PSI

Lever Operation, Screwed Bonnet, Male/Female/Male & Female End Connection, Vee/Regulation/Soft Seat Stem, According to NACE MR 0175/0103 as Request.

M.S

forged

cast steel valves



Valve Type

Size

Class

Features

Specifications

Gate

 2"to 40"  150 to 1500

Bolted/Pressure seal Bonnet, Hand Wheel/Gearbox/Actuator  Operation , Outside Screw & Yoke , Stem Rising

FL/BW/SCR(NPT)/SW Connection, Replaceable Packing Under Pressure, According to NACE MR 0175/0103 as Request.

API 600, ,BS 1414,ANSI 16.34,

,ASME B 16.5,ASME 1.20.1,

API 598

Globe

2"to 40"

150 to 1500

Bolted/Pressure seal Bonnet ,Hand Wheel/Gearbox/Actuator   Operation , Outside Screw & Yoke , Stem Rising

FL/BW/SCR(NPT)/SW Connection, Replaceable Packing Under Pressure, According to NACE MR 0175/0103 as Request.

BS 1873, ASME B 16.5,API 598, ASME 1.20.1

Check

 2"to 40"  150 to 1500

Bolted/Pressure seal Bonnet ,Ball/Piston/Swing Type,

Single / Dual Plate, FL/ BW/SCR(NPT)/SW Connection, According to NACE MR 0175/0103 as Request.

BS 1868,API 594,

API 598, ASME B 16.5,

ASME 1.20.1





wellhead valves

Valve Type

Size

Class

feature

Specification

Slab Gate Valve

2,1/16”

to

7,1/16”

API

3000 & 5000

Bolted Bonnet, Non Rising Stem , Hand Wheel/Gearbox/Actuator  Operation  ,

Flanged End Valves,

Material Class: AA,BB,CC,DD,EE,FF

Temperature Class: Class K/Class U

PR:1/2,PSL:1/2

API 6A



Ball Valves

ball

Cast Steel Ball Valve

Valve Type

Size

Class

Features

Specifications

Floating

Ball Valves

1/4 "

 to 6"

150 & 300

Full /Reduce Bore, Soft Seat, Split Body, Lever/Gearbox/Actuator Operation, FL/BW/SW/SCR(NPT)Connection , Unti Blow Out Stem, Unti Static Device, Fire Safe Construction, According to NACE MR 0175/0103 as Request.

API 6D,API 607, ISO 17292

ASME B 16.34,ASME B 16.5

,

Trunnion Mounted

Ball Valves

2"

to 40"

150 to 2500

Full / Reduce Bore, Soft / Metal Seat, Split /Fully Welded Body, Lever /Gearbox/ Actuator Operation, FL/BW Connection, Unti Blow Out Stem, Unti Static Device, Double Block &Bleed(DBB), Fire Safe Construction, According to NACE MR 0175/0103 as Request.

API 6D,API 607, ISO 17292

ASME B 16.34,ASME B 16.5





Forged Steel Ball Valve

Valve Type

Size

Class

Features

Specifications

Floating

Ball Valves

1/4 "

to 2"

150 & 2500

Full / Reduce Bore, Soft Seat, Split Body ,FL/BW/SW/SCR(NPT) Connection, Lever/Gearbox/Actuator Operation, Unti Blow Out Stem, Unti Static Device, Fire Safe Construction ,According to NACE MR 0175/0103 as Request.

API 6D,API 607, ISO 17292

ASME B 16.34,ASME B 16.5

Trunnion Mounted

Ball Valves

2"

to 40"

150 to 2500

Full / Reduce Bore, Soft /metal Seat, FL/BW Connection

Split /Fully Welded Body, Lever or Gearbox /Actuator Operator,

Unti Blow Out Stem, Unti Static Device, Double Block &Bleed(DBB)

Fire Safe Construction, According to NACE MR 0175/0103 as Request.

API 6D,API 607,

ASME B 16.5, ASME B16.34  ASME B1.20.1
